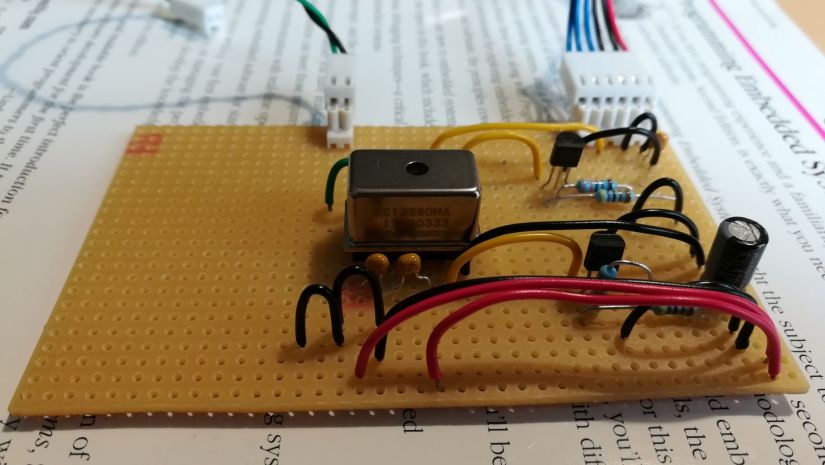

This is my spectrometer board. The C12880MA module sits in the middle, no front optics yet. I also used couple of transistors for simple 3.3V -> 5.0V level shifting and couple of by-pass caps to keep +5V source noise low.
The actual schema will follow later…
